7.3.2 Uses of the Generator Effect HT

In this lesson, we will examine how the generator effect is utilised in alternators to generate alternating current (AC) and in dynamos to generate direct current (DC).

The Generator Effect in Alternators

Alternators are devices that use the generator effect to generate alternating current (AC).

• Alternators consist of a coil of wire, known as the rotor or armature, which rotates within a magnetic field.
• As the rotor rotates, the changing magnetic field induces a potential difference across the coil, resulting in the generation of AC.

The Generator Effect in Dynamos

Dynamos are devices that utilise the generator effect to generate direct current (DC).

• Dynamos also consist of a rotating coil, known as the armature, placed within a magnetic field.
• As the armature rotates, the changing magnetic field induces a potential difference across the coil. However, unlike alternators, dynamos use a commutator and brushes to convert the induced AC into DC.

Graphical Representation of Potential Difference vs. Time

The potential difference generated in the coil can be graphically represented against time.

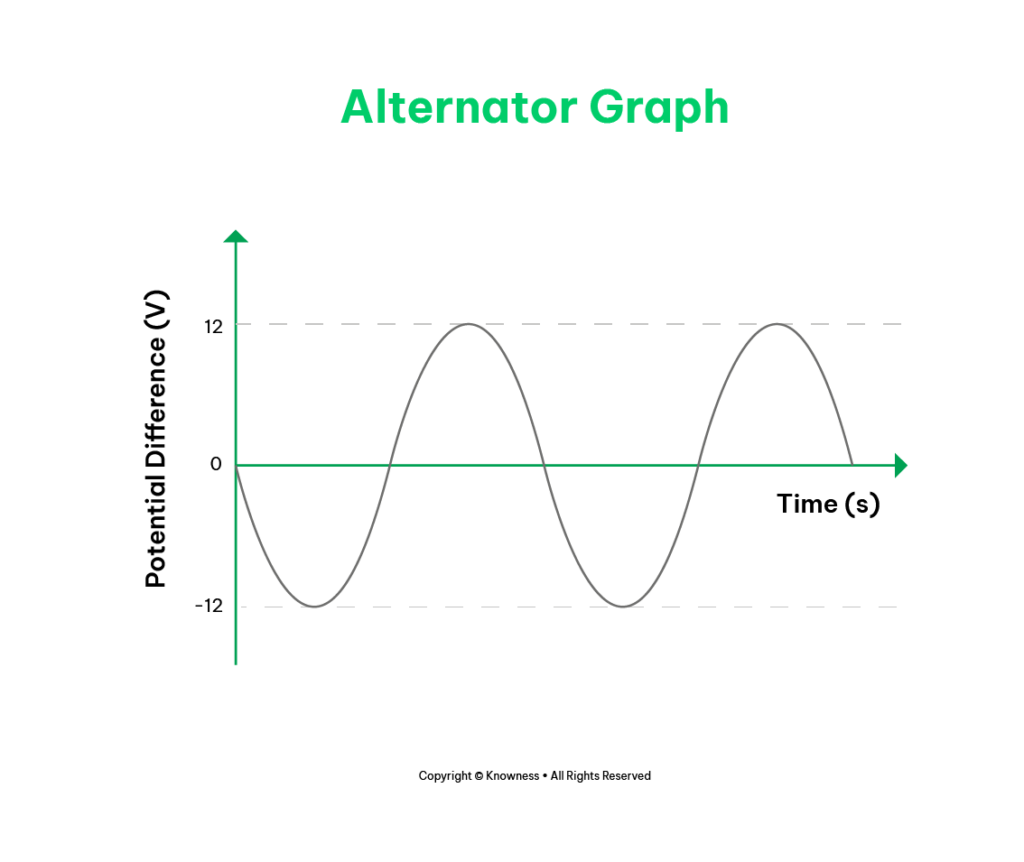

• In an alternator, the resulting graph shows a sinusoidal waveform, representing the alternating nature of the current.

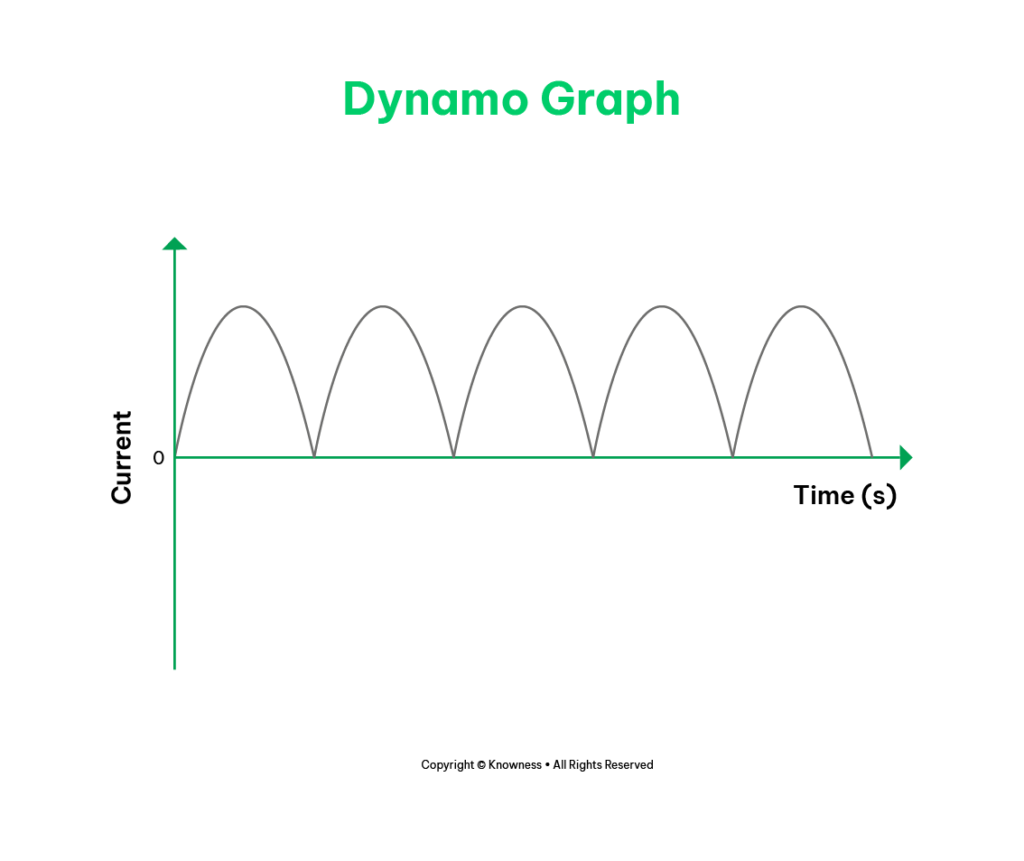

• In a dynamo, the graph illustrates a steady, constant potential difference, indicating the generation of direct current.

Practical Applications

The generator effect and its utilisation in alternators and dynamos have numerous practical applications, including:

• Power Generation: Alternators are used in power plants to generate AC electricity for general consumption.
• Automotive Industry: Alternators are employed in vehicles to charge the battery and power electrical systems.
• Dynamo-Electric Machines: Dynamos are used in smaller applications, such as bicycle dynamos, hand-cranked generators, and small-scale power generation.

Conclusion

The generator effect is a crucial phenomenon used to generate electrical energy in various devices. Alternators make use of the generator effect to produce alternating current (AC), while dynamos utilise it to generate direct current (DC).
