5.1.4 Resultant Forces

When multiple forces act on an object, their combined effect can be represented by a single force known as the resultant force. Understanding how to calculate and analyse resultant forces allows us to describe the overall motion and equilibrium of objects.

Resultant Force

The resultant force is a single force that has the same effect as all the original forces acting together.

• Calculation: To calculate the resultant force of two forces acting in a straight line, add or subtract the magnitudes of the forces depending on their directions.
• Magnitude and Direction: The resultant force is expressed in both magnitude and direction, providing a comprehensive understanding of its impact on an object.

Examples of Forces Acting on an Isolated Object or System (HT only)

• Gravitational Force: An object near the Earth's surface experiences a downward force due to gravity. This force depends on the mass of the object and the gravitational field strength.
• Normal Force: When an object rests on a surface, the surface exerts an upward force known as the normal force. It counters the force exerted by the object's weight, resulting in equilibrium.
• Frictional Force: When two surfaces come into contact and slide past each other, frictional forces oppose the relative motion. These forces can vary depending on the nature of the surfaces and the applied force.
• Applied Force: An external force that is directly applied to an object, such as pushing or pulling, can cause it to accelerate or decelerate depending on the direction of the force.
• Tension Force: When an object is connected to a rope or cable, the tension force acts along the rope, transmitting force from one end to the other.

Free Body Diagrams (HT only)

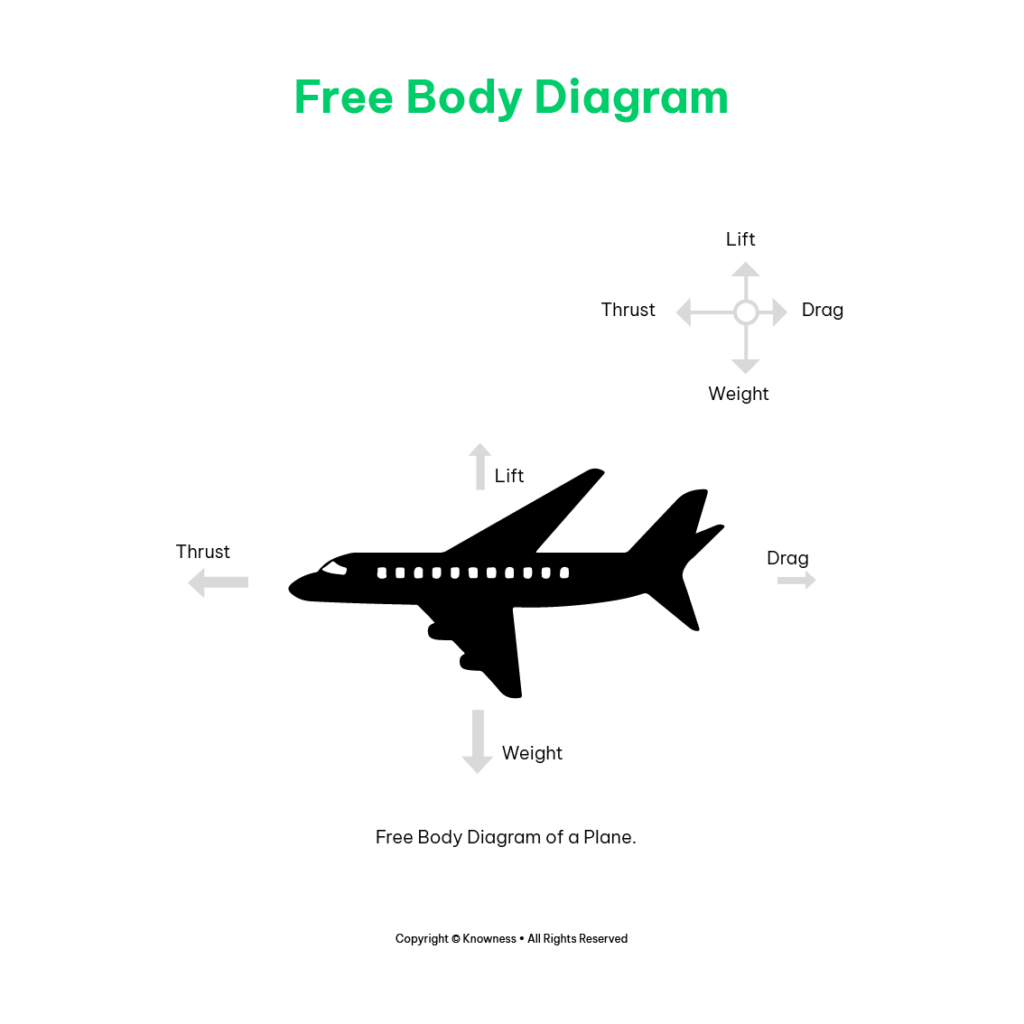

Free body diagrams are visual representations that show the forces acting on an isolated object or system.

Balanced forces occur when the resultant force on an object is zero. This means that the forces are equal in magnitude and opposite in direction, resulting in a state of equilibrium.

ResolutionThe ability to distinguish two separate points as distinct. of Forces (HT only)

A single force can be broken down into two components that act at right angles to each other. These components are known as the resolved forces.

• Equilibrium: Resolving forces can help determine the equilibrium of an object by analysing the balance between the components in different directions.

Vector Diagrams (HT only)

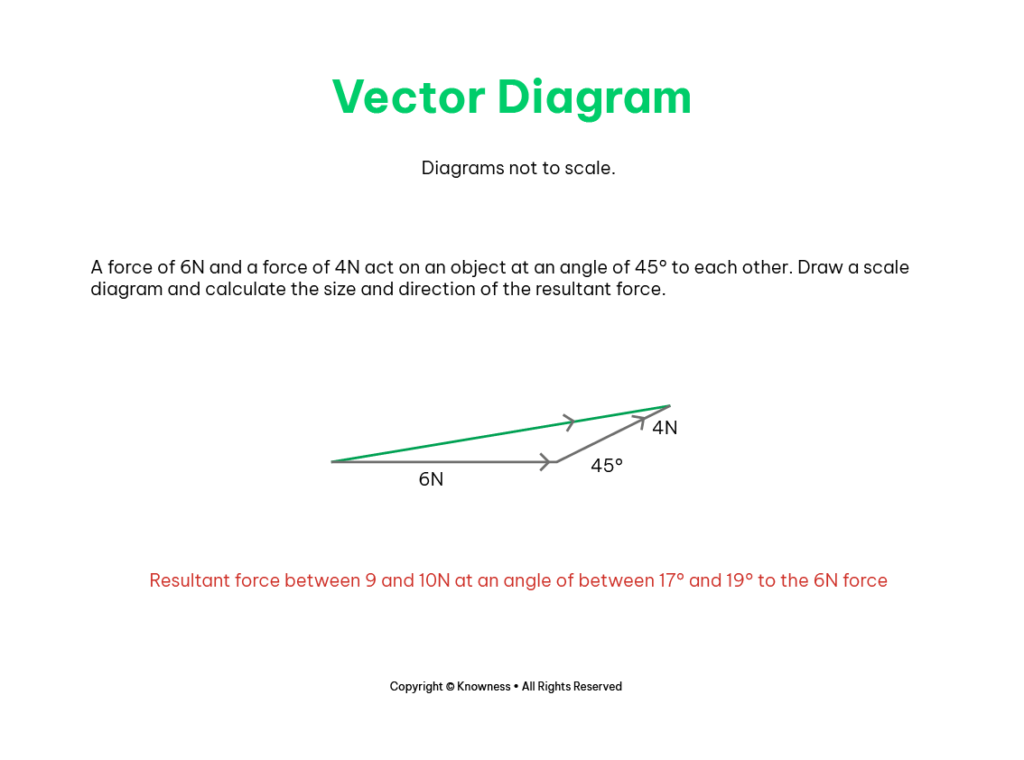

Vector diagrams are powerful tools for visually representing forces. They use arrows to represent forces, where the length of the arrow corresponds to the magnitude of the force, and the direction of the arrow indicates the direction of the force.

Vector diagrams provide a means of analysing forces in various scenarios. They can illustrate the resolution of forces, which involves breaking down a force into its components acting in different directions. This allows us to understand how different forces contribute to the overall motion or equilibrium of an object. Vector diagrams are also useful for determining the resultant force, which represents the combined effect of all the forces acting on an object.

Conclusion

The concept of resultant forces allows us to simplify the analysis of multiple forces acting on an object. By calculating the resultant force, we can understand the overall effect on an object's motion and equilibrium. Free body diagrams help visualise forces, while resolving forces into components aids in determining equilibrium. Vector diagrams provide a graphical representation that facilitates the analysis of forces, allowing us to determine the magnitude and direction of the resultant force accurately.
