7.3.1 Induced Potential HT

In this lesson, we will explore the concept of induced potential, the generator effect, and how factors influence the magnitude and direction of the induced potential difference and current.

The Generator Effect

The generator effect refers to the induction of a potential difference and the subsequent flow of current when a conductor moves relative to a magnetic field or when there is a change in the magnetic field around a conductor.

This effect forms the basis of electrical generators and other devices that convert mechanical energy into electrical energy.

Factors Affecting the Direction of Induced Potential Difference and Current

The induced current generates a magnetic field that opposes the original change.

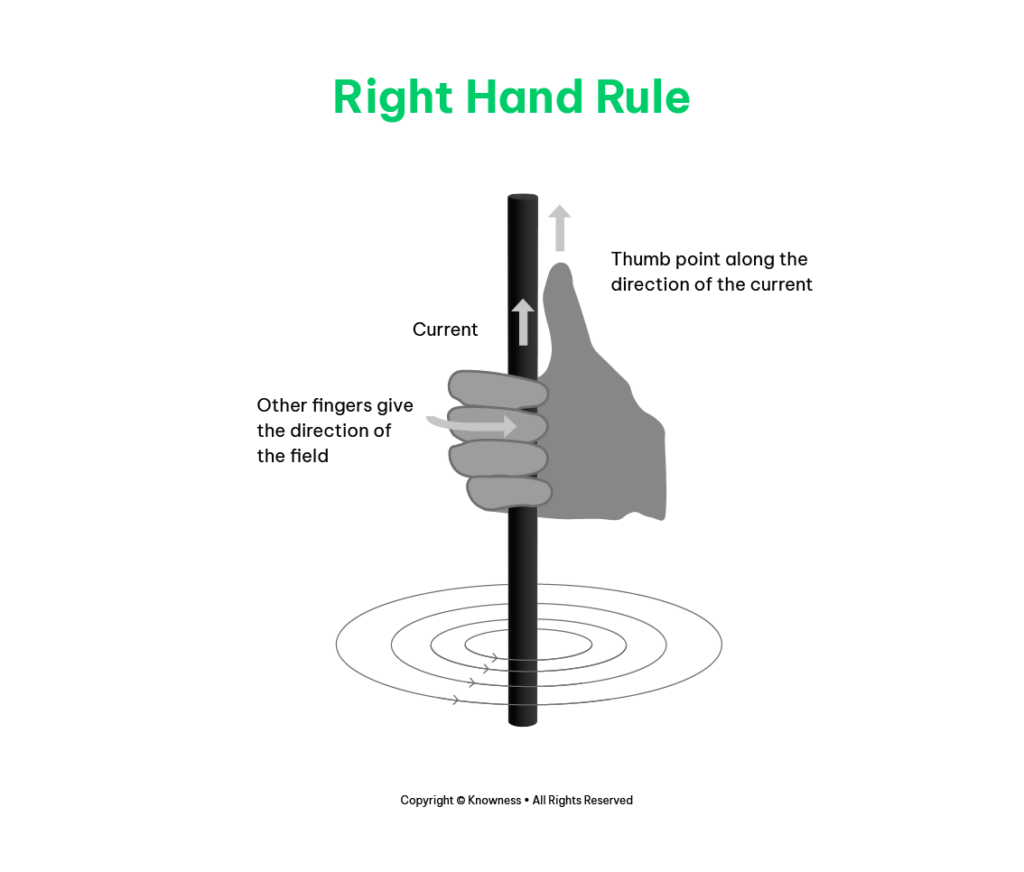

The direction of the induced current is determined by the right-hand rule, which states that if you point your thumb in the direction of motion or the change in magnetic field, the curled fingers represent the direction of the induced current.

Factors Affecting the Magnitude of Induced Potential Difference and Current

Several factors influence the size of the induced potential difference and current:

• Magnetic Field Strength: A stronger magnetic field leads to a greater induced potential difference and current.
• Velocity: The speed at which the conductor moves relative to the magnetic field affects the magnitude of the induced potential difference and current.
• Length of Conductor: A longer conductor increases the likelihood of more magnetic field lines passing through it, resulting in a larger induced potential difference and current.

Application of the Generator Effect

The principles of the generator effect find applications in various contexts, including:

• Electrical Power Generation: Electric generators convert mechanical energy into electrical energy by utilising the generator effect.
• Transformers: Transformers use the generator effect to transfer electrical energy efficiently between different voltage levels.
• Induction Cooktops: Induction cooktops use the generator effect to heat cookware directly through electromagnetic induction.
• Magnetic Braking Systems: Magnetic braking systems utilise the generator effect to generate resistance and slow down moving objects.

Conclusion

When a conductor moves relative to a magnetic field or when there is a change in the magnetic field around a conductor, a potential difference is induced, leading to the flow of current. This knowledge forms the basis of electrical power generation, transformers, induction cooktops, and magnetic braking systems.
