2.1.2 Ionic Bonding

In this lesson, we will explore the process of ionic bonding between metal and non-metal atoms. We will learn how electrons in the outer shells are transferred, resulting in the formation of positively charged metal ions and negatively charged non-metal ions. We will also understand how the ions produced by certain groups of metals and non-metals have the electronic structure of noble gases.

Ionic Bonding

Ionic bonding occurs when a metal atom reacts with a non-metal atom. In this type of bond, electrons in the outer shell of the metal atom are transferred to the non-metal atom. This transfer of electrons leads to the formation of oppositely charged ions.

Metal Atoms

Metal atoms tend to lose electrons from their outer shell during chemical reactions. This results in the formation of positively charged metal ions, also known as cations. The loss of electrons allows metal atoms to achieve a stable electron configuration, similar to that of the nearest noble gas. For example:

• Group 1 Metals: Elements in Group 1, such as sodium (Na), lose one electron to form a sodium ion (Na⁺), which has the same electronic structure as neon (Ne).
• Group 2 Metals: Elements in Group 2, such as magnesium (Mg), lose two electrons to form a magnesium ion (Mg²⁺), which has the same electronic structure as helium (He).

Non-Metal Atoms

Non-metal atoms tend to gain electrons from other atoms during chemical reactions. This results in the formation of negatively charged non-metal ions, also known as anions. The gain of electrons allows non-metal atoms to achieve a stable electron configuration, similar to that of the nearest noble gas. For example:

• Group 6 Non-Metals: Elements in Group 6, such as oxygen (O), gain two electrons to form an oxide ion (O^2-), which has the same electronic structure as neon (Ne).
• Group 7 Non-Metals: Elements in Group 7, such as chlorine (Cl), gain one electron to form a chloride ion (Cl^-), which has the same electronic structure as argon (Ar).

Electronic Structure of Noble Gases

The ions produced by metals in Groups 1 and 2, as well as by non-metals in Groups 6 and 7, have the electronic structure of a noble gas from Group 0. This is because noble gases have stable electron configurations with completely filled or half-filled outer shells. By losing or gaining electrons, the metal and non-metal atoms can achieve a similar electron configuration to the noble gases, making them more stable.

Ionic Compound Formation

Ionic compounds are formed through the attraction between positively charged metal ions and negatively charged non-metal ions. The strong electrostatic forces between the oppositely charged ions hold the compound together.

Dot and Cross Diagrams

Dot and cross diagrams are a visual representation of the electron transfer that occurs during ionic bonding. They show the outer shell electrons of each atom involved in the bond. Let's consider the formation of ionic compounds between metals in Groups 1 and 2 and non-metals in Groups 6 and 7.

• Group 1 Metals with Group 6 Non-Metals: In a dot and cross diagram, the metal atom from Group 1, such as sodium (Na), is represented by a dot for its single outer shell electron. The non-metal atom from Group 6, such as oxygen (O), is represented by crosses for its six outer shell electrons. The electron from the metal is transferred to the non-metal, resulting in the formation of a sodium ion (Na⁺) and an oxide ion (O^2-).
• Group 2 Metals with Group 7 Non-Metals: In a dot and cross diagram, the metal atom from Group 2, such as magnesium (Mg), is represented by two dots for its two outer shell electrons. The non-metal atom from Group 7, such as chlorine (Cl), is represented by crosses for its seven outer shell electrons. The two electrons from the metal are transferred to the non-metal, resulting in the formation of a magnesium ion (Mg²⁺) and two chloride ions (Cl^-).

Ion Charges and Group Numbers

The charges on the ions produced by metals in Groups 1 and 2, and non-metals in Groups 6 and 7, relate to their group numbers in the periodic table. This relationship can be determined by understanding the electron configuration and the tendency to gain or lose electrons.

• Group 1 Metals: Metals in Group 1, such as sodium (Na), have one electron in their outer shell. These metals tend to lose this electron to achieve a stable electron configuration, resulting in the formation of a +1 ion (Na⁺).
• Group 2 Metals: Metals in Group 2, such as magnesium (Mg), have two electrons in their outer shell. These metals tend to lose these two electrons to achieve a stable electron configuration, resulting in the formation of a +2 ion (Mg²⁺).
• Group 6 Non-Metals: Non-metals in Group 6, such as oxygen (O), have six electrons in their outer shell. These non-metals tend to gain two electrons to achieve a stable electron configuration, resulting in the formation of a -2 ion (O^2-).
• Group 7 Non-Metals: Non-metals in Group 7, such as chlorine (Cl), have seven electrons in their outer shell. These non-metals tend to gain one electron to achieve a stable electron configuration, resulting in the formation of a -1 ion (Cl^-).

Practice and Examples

Let's practise drawing dot and cross diagrams and determining ion charges for ionic compounds formed by metals in Groups 1 and 2 with non-metals in Groups 6 and 7. Consider the following examples:

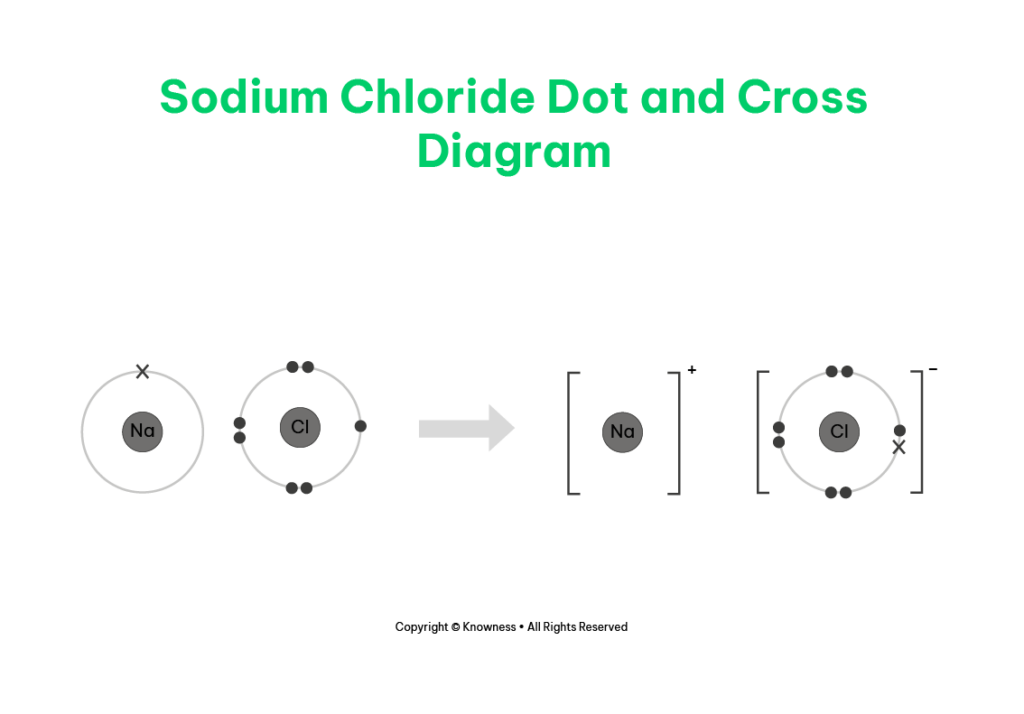

Sodium chloride (NaCl): In the dot and cross diagram, sodium (Na) donates its outer shell electron to chlorine (Cl), resulting in the formation of a sodium ion (Na⁺) and a chloride ion (Cl^-).

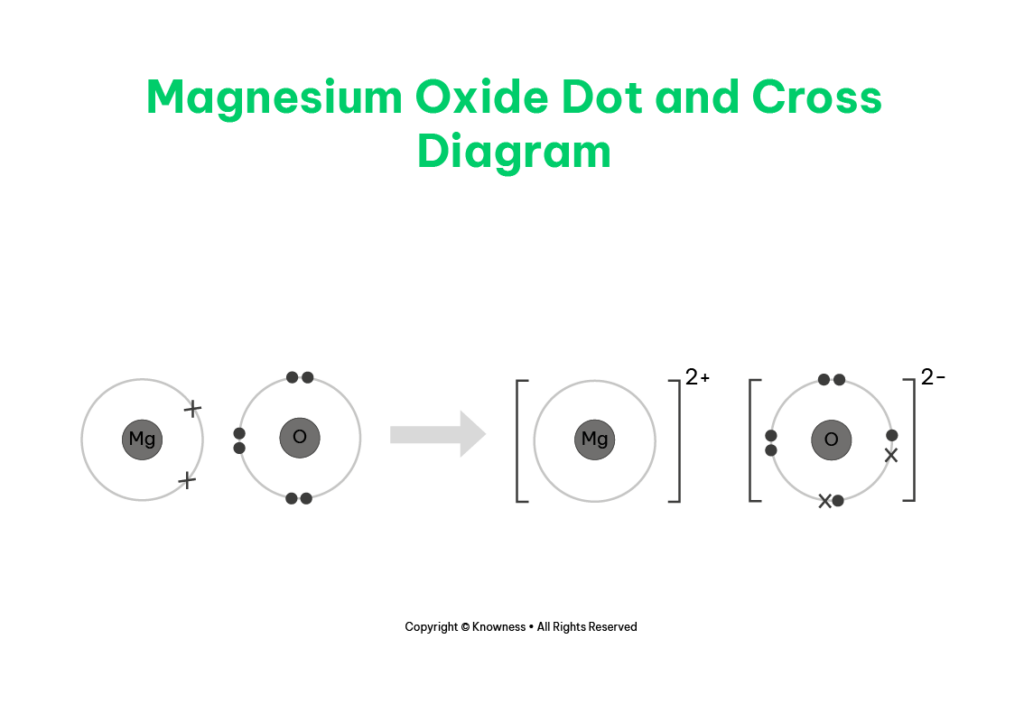

Magnesium oxide (MgO): In the dot and cross diagram, magnesium (Mg) donates its two outer shell electrons to oxygen (O), resulting in the formation of a magnesium ion (Mg²⁺) and an oxide ion (O^2-).

Conclusion

In conclusion, ionic bonding occurs when metal atoms lose electrons to become positively charged ions, and non-metal atoms gain electrons to become negatively charged ions. The resulting ions have the electronic structure of noble gases, providing stability. Dot and cross diagrams help us visualise the electron transfer that occurs during ionic bonding. The charges on the ions produced by metals in Groups 1 and 2 and non-metals in Groups 6 and 7 can be determined based on their group numbers in the periodic table.
