1.1.2 CPU Performance
In this lesson, you will learn how clock speed, cache size and number of cores affect CPU performance. You will also learn why no single characteristic guarantees better performance, because different tasks benefit from different combinations of CPU features.
CPU Characteristics
A CPU has several characteristics that can affect how well it performs, including clock speed, cache size and the number of cores. These features help determine how quickly and efficiently the CPU can process instructions.
Clock speed affects how many cycles the CPU can complete each second. Cache size affects how quickly the CPU can access frequently used data and instructions. The number of cores affects how many tasks, or parts of tasks, the CPU may be able to process at the same time. These characteristics work together, so CPU performance depends on the overall balance between them, not just one feature on its own.
Clock Speed
Clock speed, measured in Hertz (Hz), is the number of clock cycles a CPU completes per second. A clock cycle is one tick of the CPU’s internal clock, which helps coordinate CPU operations. A higher clock speed usually allows the CPU to process instructions faster, if the other CPU characteristics are similar.
The word “usually” is important because clock speed is not the only factor that affects CPU performance. A CPU with a higher clock speed may still perform worse than another CPU if it has fewer cores, less cache, or if the software cannot make good use of the CPU.
Clock speed can be compared to how quickly work moves through a system. A faster CPU clock can help instructions move through the CPU more quickly, but the rest of the CPU also needs to support that speed for performance to improve.
| Effect | Explanation |
|---|---|
| Single-Core Performance | Clock speed has a strong impact on tasks that mainly use one core. A higher clock speed allows that core to complete more cycles per second, which can help instructions be processed faster. |
| Multi-Core Performance | In multi-core tasks, different cores can process instructions at the same time. A higher clock speed can help each core process instructions faster, improving overall performance when software can use multiple cores effectively. |
| Heat and Power Consumption | As clock speed increases, the CPU usually uses more power and produces more heat. High clock speeds may require better cooling to prevent overheating. |
| Limitations | There are physical limitations to increasing clock speeds, such as heat dissipation and power consumption. Manufacturers often reach a point where further increases in clock speed become impractical. |
Cache Size
Cache is a small, high-speed memory located on the CPU chip itself. It serves as a buffer between the CPU and the main memory (Random Access Memory, or RAM). Cache is faster than RAM, allowing the CPU to access frequently used data more quickly.
This is especially useful when the CPU needs to access the same data or instructions repeatedly, because the information can be kept close to the CPU instead of being fetched from RAM each time.
| Effect | Explanation |
|---|---|
| Data Access Speed | A larger cache size means the CPU can store more data that it frequently accesses, reducing the time needed to fetch data from slower main memory. This results in faster overall performance, especially for repetitive tasks. |
| Cache Hit Rate | The cache hit rate refers to the percentage of times the CPU finds the required data in the cache without needing to access the slower main memory. A larger cache improves the cache hit rate, resulting in better performance. |

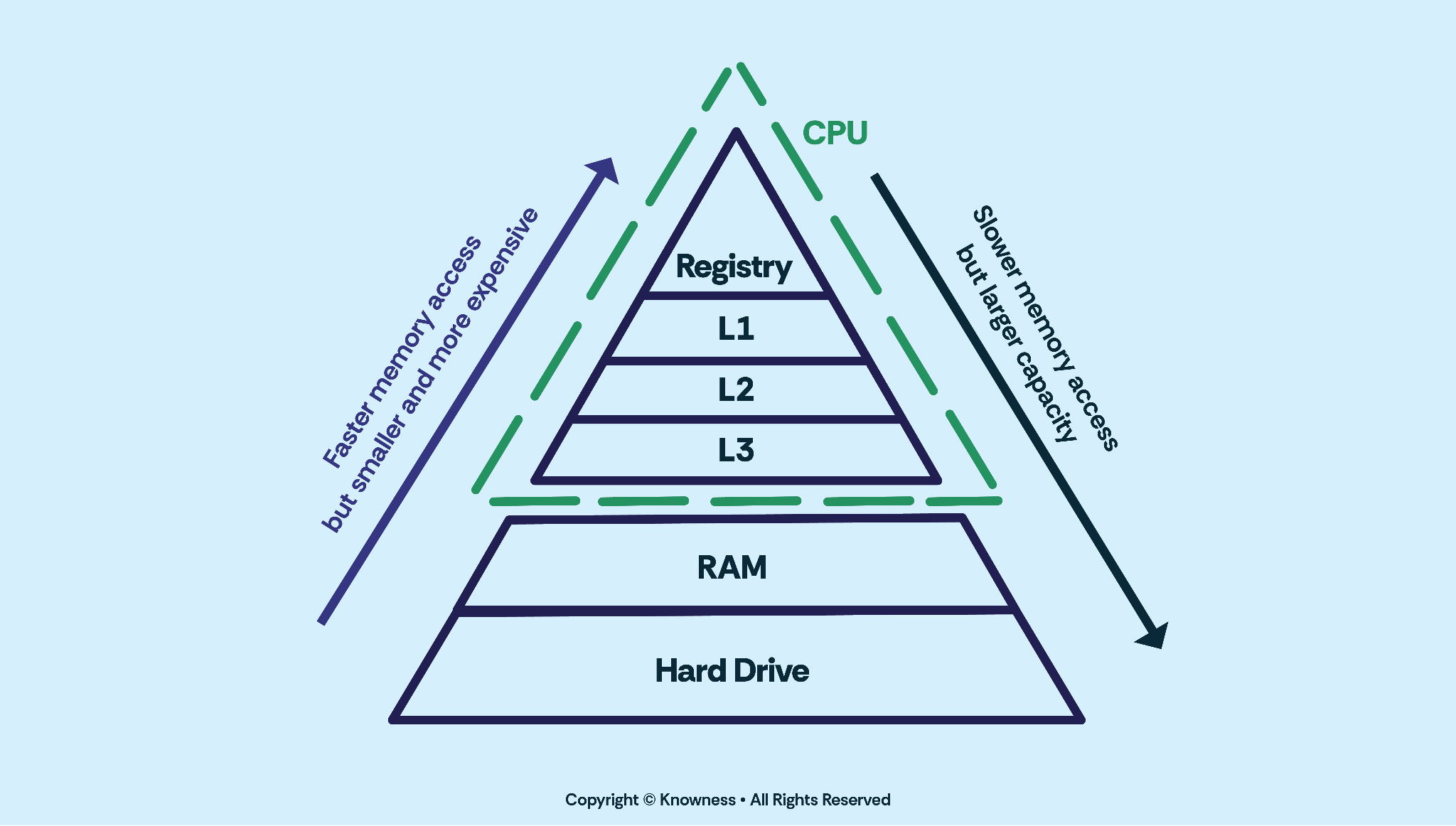

| Cache Levels | Modern CPUs often have multiple cache levels (L1, L2, L3), each with different sizes. Smaller, faster caches (L1 and L2) hold the most critical data, while the larger L3 cache stores additional data shared across cores. This can be demonstrated in a memory hierarchy pyramid in Figure 1 below. |
| Cost and Complexity | Increasing cache size comes at a cost, both in terms of chip area and manufacturing complexity. Larger caches can make CPUs more expensive to produce. |
Number of Cores
The number of cores in a CPU refers to the number of independent processing units on the chip. Each core can execute its own set of instructions, allowing the CPU to process more than one task at the same time when the software and operating system can divide the work effectively.
A core is a physical processing unit within a CPU that executes instructions. A thread is a sequence of instructions that can be processed by a core. A multi-threaded application can split work into separate threads, so different cores can process different threads at the same time.
| Effect | Explanation |
|---|---|
| Parallel Processing (Parallelism) | CPUs with more cores can execute multiple tasks or threads in parallel, improving performance in multi-threaded applications. Tasks that can be split into separate threads benefit the most from a higher core count. |
| Single-Core Performance | More cores help with tasks that can be split up, but they do not automatically improve tasks that mainly use one core. For single-core tasks, clock speed may matter more. |
| Core Management | The operating system must manage how tasks are shared between cores. If software is not designed to use multiple cores well, it may not fully benefit from a higher core count. |
| Power Consumption | CPUs with more cores generally consume more power, especially under heavy loads when all cores are utilised. |
Combining Characteristics
CPU performance depends on how clock speed, cache size and number of cores work together. It is not usually accurate to say that one CPU is better just because it has one higher characteristic. A balanced CPU often gives better performance across a wider range of tasks.
High clock speed helps each core process instructions quickly. More cores allow the CPU to work on more tasks or threads at the same time. A larger cache helps reduce delays by keeping frequently used data and instructions close to the CPU. When these characteristics are well balanced, the CPU can perform efficiently in both single-core and multi-core tasks.
The best combination depends on the workload. For example, video editing, rendering and running virtual machines often benefit from more cores because the work can be divided into smaller parts. Tasks that rely heavily on one sequence of instructions may benefit more from a higher clock speed. Modern games may benefit from both, because they often need strong single-core performance as well as the ability to handle several tasks at once, such as graphics, physics, game logic and background processes. This is why the best CPU depends on what the computer is being used for, rather than on one characteristic alone.
