4.1 Monitoring Earth From Space

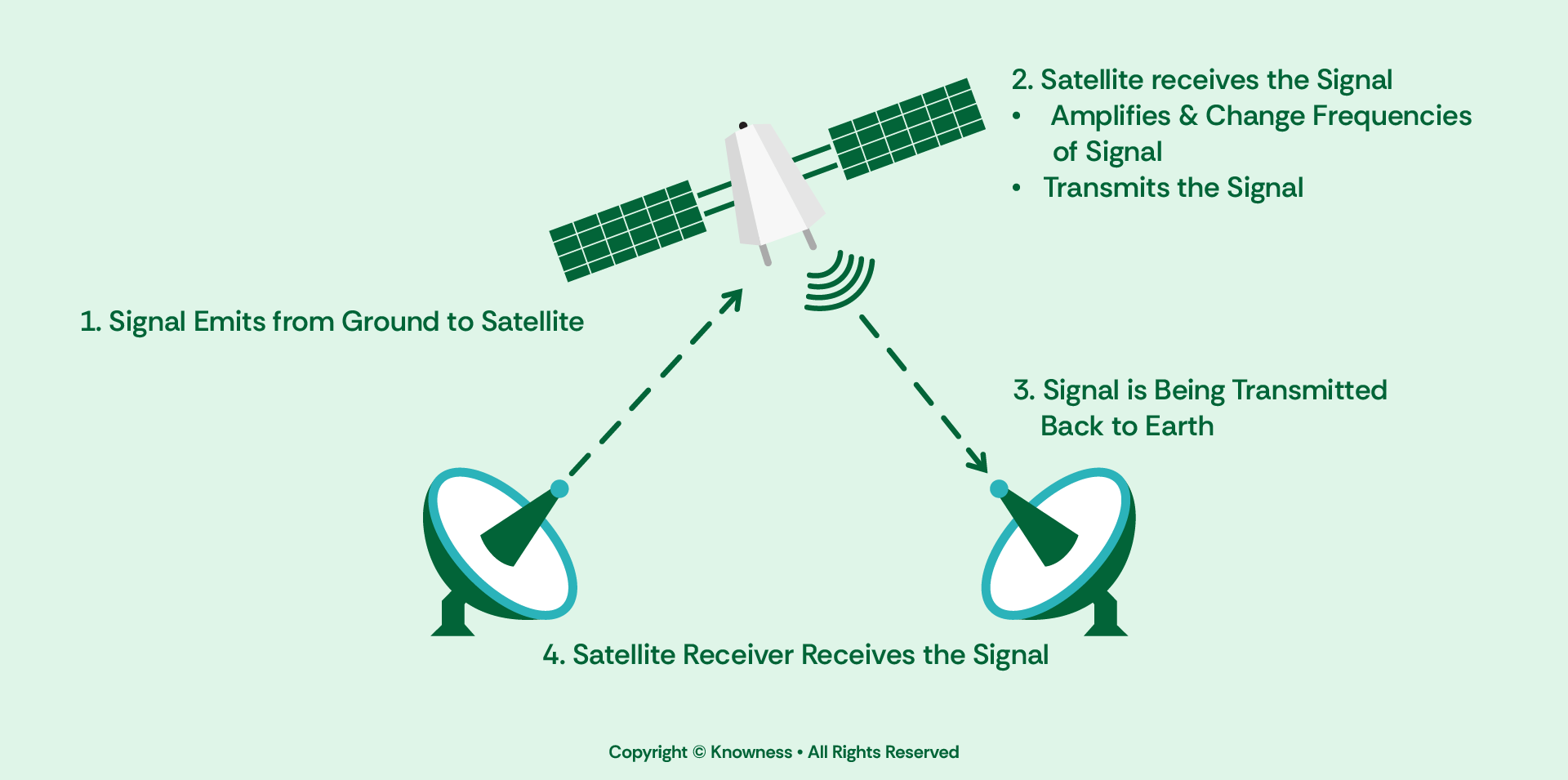

There are three main types of satellites listed below, these follow some key principles: Signals are sent from Earth to the satellite using high-frequency bands, which are then received, amplified and sent back to Earth. The ground station then receives the signal and decodes it, providing us with information.

Geostationary Satellites: Positioned in a fixed orbit approximately 35,786 kilometers above the equator, geostationary satellites provide continuous coverage of the same region. These satellites are critical for weather monitoring and telecommunications, offering real-time data on atmospheric conditions and storm development (Li, 2014).

Polar-Orbiting Satellites: These satellites orbit the Earth from pole to pole, capturing comprehensive global coverage over several days. Their close proximity to Earth (around 800 kilometers) enables high-resolution imagery, essential for detailed environmental analysis (Kogan, 1995).

Earth Observation Satellites: Designed specifically for monitoring Earth's surface and atmosphere, Earth observation satellites use advanced sensors to collect data on land use, vegetation health, and atmospheric composition. Examples include the Sentinel and Landsat missions (Bensana et al, 1995).

Satellites can collect different types of data, which can be used for various purposes. For example, Synthetic Aperture Radar (SAR) data provides high-resolution data in all weather conditions, making it invaluable for monitoring flood extents and glacial dynamics year round. Thermal Imaging data measures surface temperatures to detect heat anomalies, proving to be very useful for monitoring wildfires and geothermal activity.

Multispectral and hyperspectral data records wavelengths across the electromagnetic spectrum, which can be used to analyse vegetation health, soil composition, and water quality (Rothblatt, 1981). On a more basic level, satellites can collect visual imagery of an area over time, including the elevation gain or loss over time, which can be useful to analyse land use change, vegetation growth patterns, and to monitor erosion.

The launch of Sputnik 1 by the Soviet Union in 1957 marked the inception of the satellite era. This milestone was followed by the United States' Explorer 1 in 1958, which contributed significantly to scientific understanding by detecting the Van Allen radiation belts (Li & Hudson, 2019). The Landsat Program (1972-present) is one of the longest running Earth observation initiatives, providing consistent data on land cover changes, particularly useful in monitoring resource management. Copernicus Program (2014-present), led by the European Space Agency (ESA), includes sentinel satellites, which offer free, high-resolution data to support global environmental research and policy-making.

More recently, high-resolution satellites, like WorldView-3 provide sub meter resolution imagery, enabling precise urban mapping and infrastructure monitoring. Miniaturised Satellites, i.e., CubeSats, offer a more compact, cost-efficient satellite that are used for targeted missions, like agriculture monitoring and disaster response.

The future of satellite technology is poised to transform Earth observation, disaster response, and environmental monitoring through advancements in spatial resolution, real-time data processing, artificial intelligence (AI), and next-generation sensor technologies. One of the most significant developments is the move toward higher resolution imaging, with commercial satellites expected to achieve sub-10 cm resolution in the coming decades. Additionally, hyperspectral imaging, which captures data across hundreds of spectral bands, will become more widely available, allowing for precise material identification, early detection of environmental changes, and improved resource management.

Advancements in artificial intelligence and machine learning are set to revolutionise satellite data processing. Instead of relying solely on raw data transmission to ground stations, AI-driven onboard processing will enable satellites to analyse and interpret data in real time, significantly reducing response times for critical applications. This capability will be particularly useful for disaster response, where satellites will be able to detect wildfires, floods, or earthquakes within minutes and automatically alert emergency services. AI will also enhance change detection algorithms, allowing for the rapid identification of deforestation, glacier retreat, or urban expansion with greater accuracy and efficiency than ever before.

The future of satellite technology will also see improvements in low-latency communication and near-real-time data relay. Innovations such as inter-satellite linking via optical communication (as demonstrated by SpaceX’s Starlink constellation) will allow for faster data transmission across global networks without reliance on ground stations. This will be particularly beneficial for climate scientists, military operations, and international agencies responding to humanitarian crises.

In terms of disaster management, the integration of microsatellites and nanosatellites into existing monitoring networks will provide continuous, low-cost global coverage. These small satellites, deployed in large constellations, will enhance the ability to track and predict extreme weather events, such as hurricanes and droughts, with greater accuracy. Radar satellites using synthetic aperture radar (SAR) will complement optical imaging by offering all-weather, day-and-night monitoring, making them invaluable for assessing damage after natural disasters and guiding rapid response efforts.

Additionally, emerging technologies such as quantum communication and blockchain-based data verification will improve the security and reliability of satellite data, ensuring that geospatial information remains tamper-proof and resistant to cyber threats. As satellite technology continues to advance, its role in climate change mitigation, resource management, and global security will become even more critical, shaping the way we interact with and respond to changes on Earth.
