4.2 Overview of Structural Systems
This lesson introduces the structural systems that form the backbone of building design. From beams and columns to trusses and shear walls, these systems are critical for supporting loads and resisting external forces. By understanding how these systems function and interact, you will learn how to select the right one for various design needs, ensuring safety and efficiency in real-world applications.
Exploring Key Structural Systems
Different types of structural systems are used depending on a building’s purpose, size, and location. The primary systems include:
| Structural System | Explanation |
|---|---|
| Beam and Column Systems | These are the most common and simplest structural systems, where vertical columns support horizontal beams. This system is widely used in low- and mid-rise buildings. |
| Frame Systems | A system made up of interconnected beams and columns. The frame resists loads through a combination of bending, shear, and axial forces. This system is commonly used in high-rise buildings. |
| Trusses | Triangular units that support roofs or floors. Trusses are designed to carry heavy loads over large spans and are often seen in bridges and large roof structures. |
| Shear Wall Systems | Vertical walls that resist lateral forces, such as those caused by wind or earthquakes. These are crucial in high-rise buildings and structures located in seismic zones. |
| Shell Structures | Thin, curved surfaces that provide strength without the need for internal columns, often used in large domes or vaulted roofs |

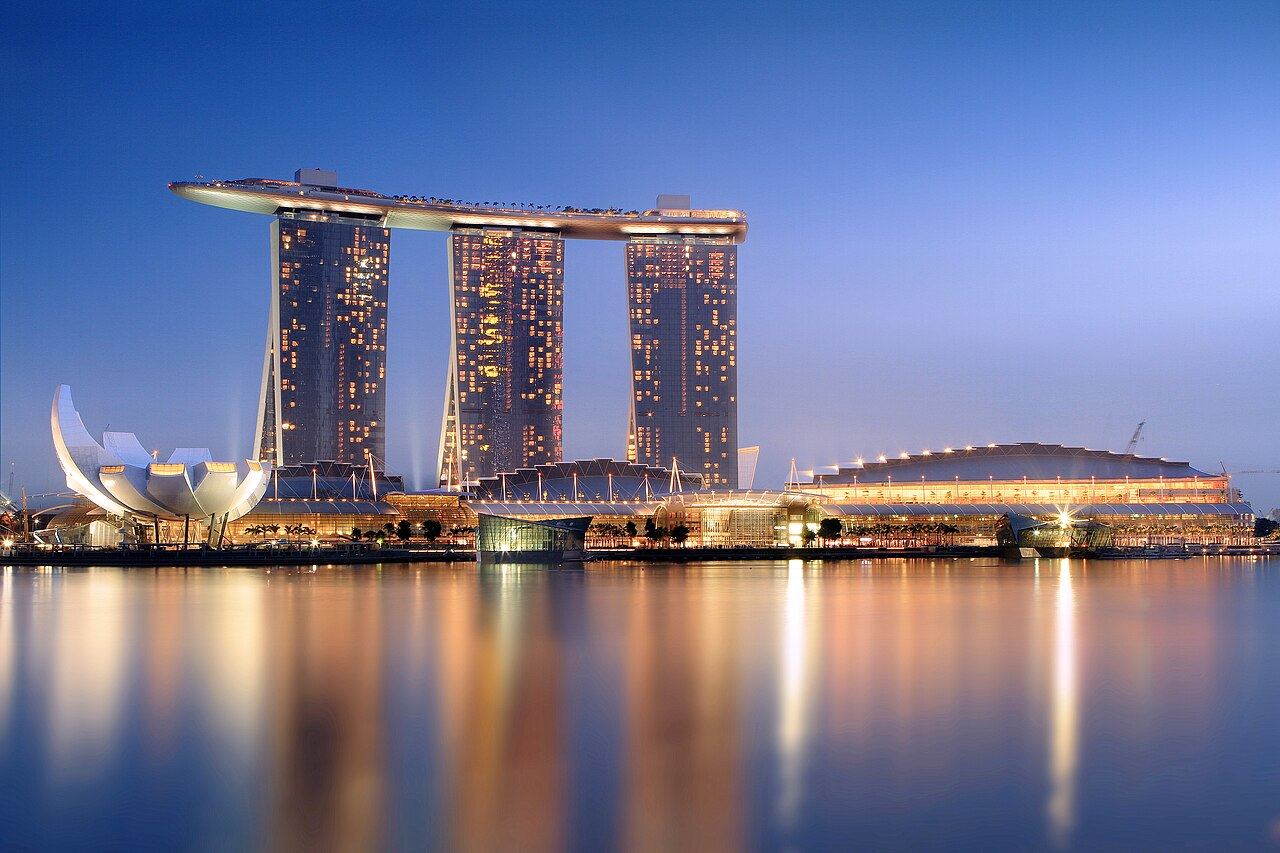

The Marina Bay Sands in Singapore features a unique structural system, with three interconnected hotel towers supported by a large floating platform. The platform is held up by specially designed trusses that distribute the weight evenly. This innovative design allows for a striking visual form while ensuring stability against high winds and seismic forces. The use of advanced engineering techniques in this structure exemplifies a bold approach to modern skyscraper design.
Integrating Systems for Maximum Efficiency
While each structural system serves a specific purpose, the key to a successful design lies in integrating multiple systems into a cohesive whole. For example, a building may combine shear walls, columns, and a frame system to resist both vertical and lateral loads. The proper integration of systems can improve a building’s performance, enabling it to handle stresses efficiently and remain stable over time.
Bringing It All Together

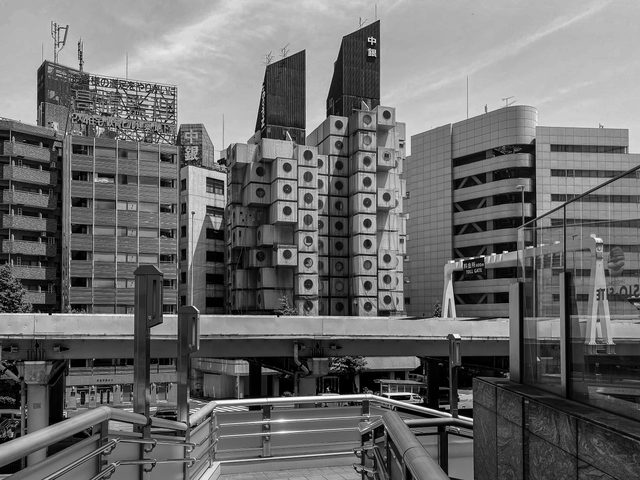

Once you understand the different structural systems and their functions, you can begin integrating them into your designs. A striking example is the Nakagin Capsule Tower, which used a central reinforced concrete core with cantilevered steel capsules, showcasing modular construction, prefabrication, and structural independence. Each capsule was individually attached, allowing for replacement without affecting the rest of the building, a radical concept in adaptable Architecture. The project illustrates how structural innovation can drive both form and function, pushing the boundaries of traditional design.
The goal is to create a balance between efficiency, aesthetic expression, and structural integrity. Whether designing a small residential building or a towering skyscraper, the appropriate structural system ensures that the design can safely withstand the forces acting upon it. By understanding structural systems, you will acquire the knowledge necessary to design buildings that are not only visually impressive but also structurally sound and efficient.
